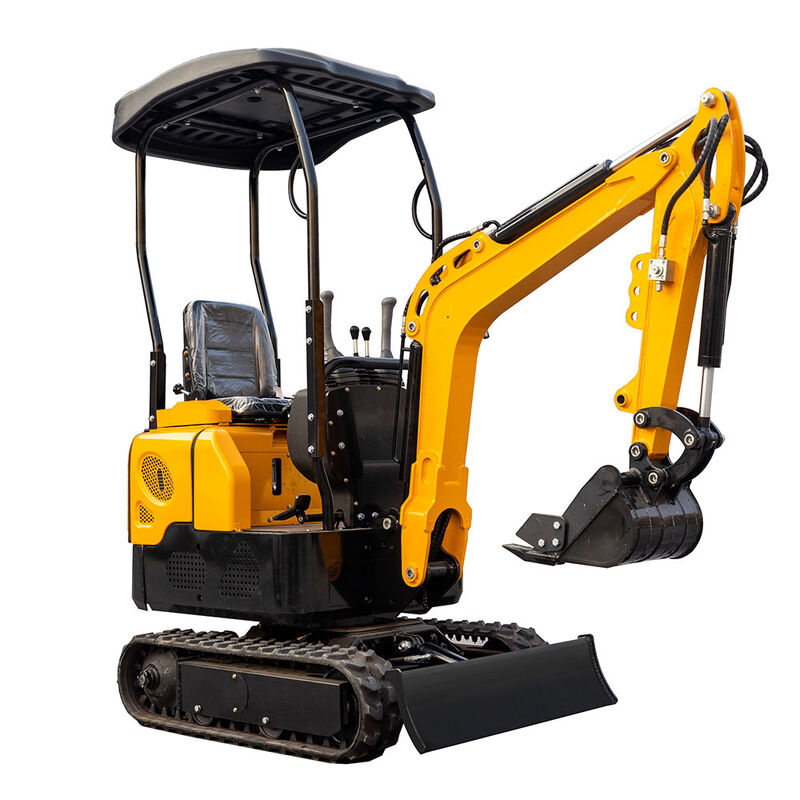

HT10G Mini Excavator with 1000kg Weight

Name: HT10G Mini Excavator with 1000kg Weight
Brand: Shandong Hightop Group
SKU: HT10G
Availability: InStock

Produktdetails

Modell:

HT10G

Gewicht:

1000kg

Baggereimerkapazität:

0.025cbm/120kg

Minimale Bodenfreiheit:

100mm

Hervorheben:

1000kg Weight Mini Excavator

0.025cbm Bucket Capacity Compact Excavator

Zahlungs-u. Verschiffen-Ausdrücke

Verpackung Informationen

Holzkiste

Lieferzeit

5-14 Arbeitstage

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union

Versorgungsmaterial-Fähigkeit

100 Set pro Monat

Produkt-Beschreibung

HT10G Mini Excavator

Premium Components & Quality Assurance

High-quality components from developed countries: Japan main hydraulic pump, Italy main valve, Italy swing motor and traveling motor
Domestic KOOP 192 engine for strong power and stable operation, with optional Koop Engine for European emission standards or US BRIGGS & STRATTON Engine for USA emission compliance
Hydraulic pipes imported from Continental AG Germany Company for superior leak resistance
100 kg counterweight for enhanced stability and power during operation
Structural parts processed by Japan Komatsu supporting manufacturers with complete surface treatment including shot blasting, pickling, phosphating, and spraying for superior paint adhesion and durability
Pressure reducing valve device for easier machine startup

Advanced Optional Features

Adjustable dozer blade length (84cm-105cm) with working height adjustment from -15cm to 15cm
Extendable crawler system from 830mm to 1000mm for navigating narrow spaces
60-degree boom deflection capability for enhanced operational flexibility

Technical Specifications

Weight	1000kg	Standard track plate width E	180mm
Digging bucket capacity	0.025cbm/120kg	Track gauge F	750mm
Rotation speed	12RMP	Wheelbase H	884mm
Climbing capacity	30°	Track ground length I	962mm
Engine	KOOP 192 (Optional: BRIGGS & STRATTON)	Track length J	1204mm
Main Valve	Beifang	Minimum ground clearance K	100mm
Rated power	10.2KW/2500RPM	Tail swing radius L	810mm
Overall length / transport length A/M	4000/2380mm	Max. Digging height	2455mm
Overall width B	940mm	Max. Dumping height	1605mm
Overall height (cab roof) C	2268mm	Max. Digging depth	1855mm
Total track width D	930mm	Max. Digging radius on ground	3050mm
		Max. digging radius	3130mm
